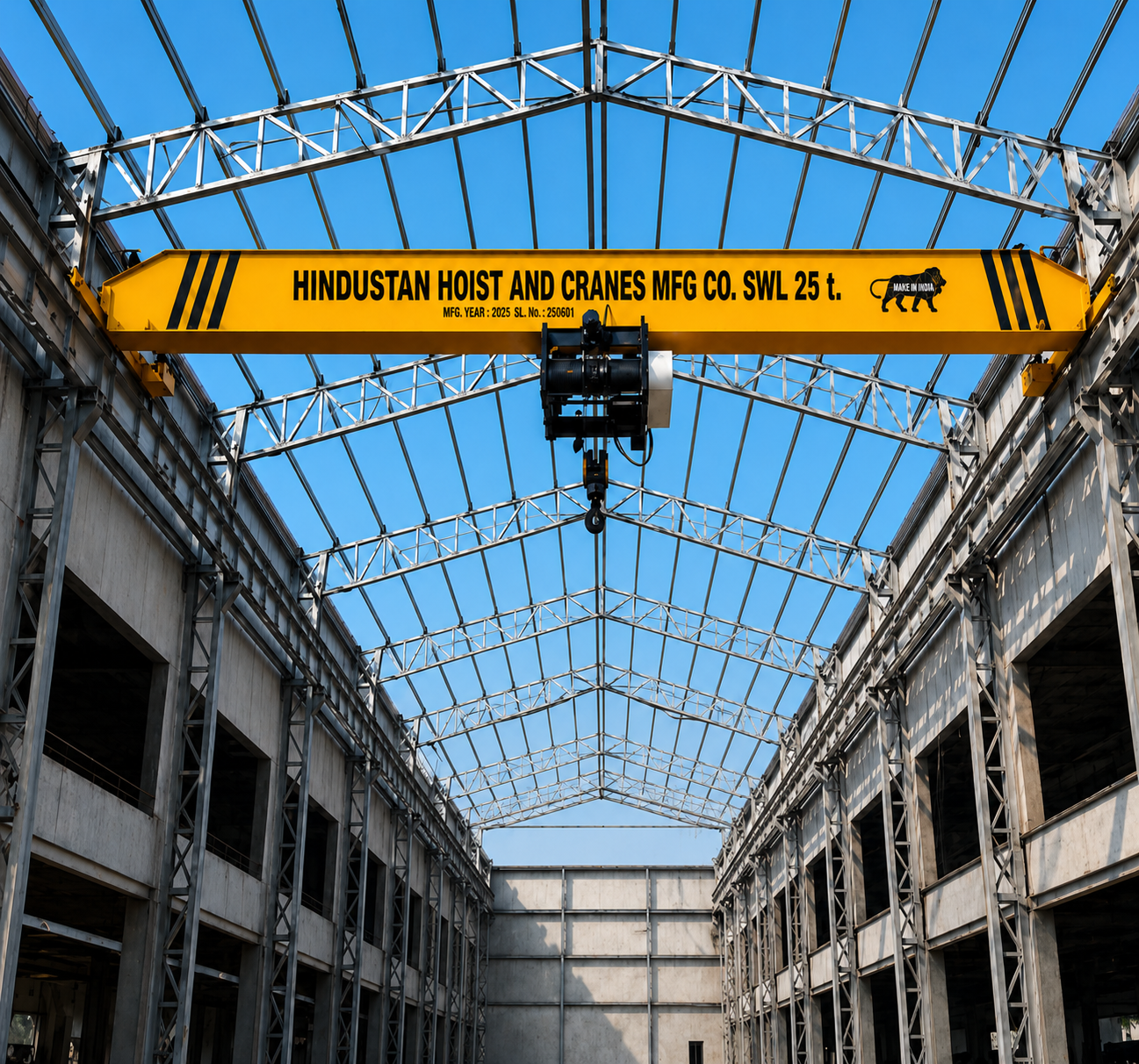

1.EOT Crane – Single Girder
Product Overview
Hindustan Hoist & Cranes Mfg. Co. manufactures premium-quality Single Girder EOT (Electric Overhead Travelling) Cranes designed for safe, efficient, and economical material handling in industrial environments. Engineered using high-grade structural steel, precision-machined components, and advanced manufacturing techniques, our Single Girder EOT Cranes deliver smooth operation, excellent load handling, and long service life with minimal maintenance.
Designed for light to medium-duty applications, these cranes are ideal for workshops, warehouses, fabrication units, machine shops, manufacturing plants, and assembly lines where reliable overhead material handling is essential. The compact design offers optimum hook approach, maximum floor space utilization, and cost-effective operation.
Our Single Girder EOT Cranes are available in a wide range of lifting capacities, spans, lifting heights, and duty classifications and can be customized to meet specific customer requirements. They can be supplied with Electric Wire Rope Hoists or Electric Chain Hoists, along with advanced control and safety features for enhanced operational efficiency.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Single Girder EOT Crane |
| Crane Type | Electric Overhead Travelling Crane |
| Safe Working Load (SWL) | 500 kg to 20 Ton |
| Span | Up to 30 Meters |
| Lifting Height | Up to 18 Meters |
| Hoist Type | Electric Wire Rope Hoist / Electric Chain Hoist |
| Girder Construction | Welded Box Girder / ISMB Girder |
| Crane Duty Class | Class II, III & IV (IS 3177 / FEM / CMAA) |
| Long Travel Speed | 5–20 m/min (VFD Optional) |
| Cross Travel Speed | 5–20 m/min (VFD Optional) |
| Hoisting Speed | 2–8 m/min |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Control System | Pendant Push Button / Radio Remote |
| Power Feeding | DSL Busbar / Festoon Cable System |
| Surface Finish | Epoxy Primer with Industrial PU Paint |
| Application | Industrial Material Handling |
Standard Features
Design & Manufacturing Standards
- IS 3177 – Code of Practice for Electric Overhead Travelling Cranes
- IS 807 – Design, Manufacture & Erection of Cranes
- IS 2062 – Structural Steel
Standard Features
Structural Features
- Heavy-duty fabricated box girder
- Optimized lightweight crane design
- Precision machined end carriages
- High-strength structural steel construction
- Compact hook approach
- Anti-corrosion painted finish
- Rigid welded construction
- Long operational life
Mechanical Features
- Electric Wire Rope Hoist or Chain Hoist
- Precision-machined wheels
- Heavy-duty geared motors
- Smooth trolley movement
- High-efficiency transmission
- Maintenance-friendly design
- Low vibration operation
- Continuous-duty performance
Electrical Features
- Energy-efficient motors
- VVVF Drive (Optional)
- Electromagnetic fail-safe brake
- IP55 electrical protection
- Class F insulated motors
- Push Button Pendant Station
- Wireless Radio Remote Control (Optional)
- Phase Failure & Phase Reversal Protection
Safety Features
- Overload Protection
- Upper & Lower Limit Switches
- Emergency Stop Button
- Cross Travel Limit Switch
- Long Travel Limit Switch (Optional)
- Buffer Stops
- Hook with Safety Latch
- Rubber Buffers
- Anti-Collision Device (Optional)
- Audible Warning Alarm (Optional)
- Factory Load Tested
- High Safety Factor
Optional Features
- Dual Speed Hoisting
- Variable Frequency Drive (VFD)
- Wireless Radio Remote Control
- Load Limiter
- Digital Load Display
- Flameproof Hoist
- Spark Resistant Components
- Cabin Operation
- DSL Busbar System
- Festoon Cable System
- Crane Lighting
- Anti-Collision System
- PLC Based Controls
- GSM Monitoring
- Special Paint System
- Weatherproof Design
- Customized Span
- Customized Lift Height
Standard Scope of Supply
- Single Girder Bridge
- End Carriages
- Electric Wire Rope Hoist / Chain Hoist
- LT & CT Drive Units
- Electrical Control Panel
- Pendant Push Button Station
- Power Supply System
- Crane Rails (Optional)
- Fasteners & Hardware
- Installation Drawings
- Operation & Maintenance Manual
- Routine Test Certificate
- Warranty Certificate
Applications
Hindustan Hoist & Cranes Mfg. Co. Single Girder EOT Cranes are widely used in:
- Engineering Industries
- Manufacturing Plants
- Fabrication Workshops
- Automobile Industries
- Steel Industries
- Machine Shops
- Warehouses
- Assembly Lines
- Cement Plants
- Textile Industries
- Packaging Industries
- Food Processing Plants
- Pharmaceutical Industries
- Power Plants
- General Material Handling Applications
Why Choose Hindustan Hoist & Cranes Mfg. Co. Single Girder EOT Crane?
- Over 8+ Years of Manufacturing Experience
- Heavy-Duty Structural Design
- Smooth & Reliable Operation
- High Load Carrying Capacity
- Precision Engineering
- Energy-Efficient Performance
- Low Maintenance Cost
- High Operational Safety
- Rugged Industrial Construction
- Customized Design Solutions
- Competitive Pricing
- Timely Delivery
- Installation & Commissioning Support
- Reliable After-Sales Service
- Genuine Spare Parts Availability
Technical Advantages
- Lightweight yet robust bridge construction
- Maximum hook approach for efficient workspace utilization
- Smooth hoisting, cross travel, and long travel movements
- Low wheel load reduces building structure requirements
- Compact design for optimum floor space usage
- Energy-efficient operation with optional VFD control
- Reliable performance under continuous duty
- Easy maintenance and service access
- Long service life with minimal downtime
- Custom-built to suit specific industrial applications
Frequently Asked Questions (FAQs)
1. What is a Single Girder EOT Crane?
A Single Girder EOT Crane is an overhead travelling crane with a single bridge girder designed for lifting and moving materials efficiently within factories, warehouses, workshops, and industrial facilities.
2. What lifting capacities are available?
We manufacture Single Girder EOT Cranes ranging from 500 kg to 20 Ton, with customized capacities available upon request.
3. What span and lifting height can be provided?
Our cranes can be manufactured with spans up to 30 meters and lifting heights up to 18 meters, depending on the site requirements.
4. Which hoists can be used?
The crane can be equipped with Electric Wire Rope Hoists or Electric Chain Hoists, depending on the lifting capacity and application.
5. Which industries use Single Girder EOT Cranes?
These cranes are widely used in manufacturing plants, engineering workshops, fabrication units, warehouses, automobile industries, steel plants, machine shops, and assembly lines.
6. Do you provide installation and commissioning?
Yes. We provide complete installation, testing, commissioning, operator training, and technical support.
7. Are spare parts and maintenance services available?
Yes. We offer genuine spare parts, Annual Maintenance Contracts (AMC), preventive maintenance, inspections, modernization, and prompt after-sales support.
8. Can the crane be customized?
Yes. We manufacture customized cranes based on capacity, span, lifting height, duty classification, hoist type, speed, control system, and operating environment.
9. What control options are available?
The crane can be operated using a Pendant Push Button Station, Wireless Radio Remote Control, or Cabin Control, depending on customer requirements.
10. What safety features are included?
Our Single Girder EOT Cranes are equipped with overload protection, upper & lower limit switches, emergency stop, fail-safe brakes, phase protection, hook safety latch, buffer stops, and factory-tested safety systems to ensure safe and reliable lifting operations.

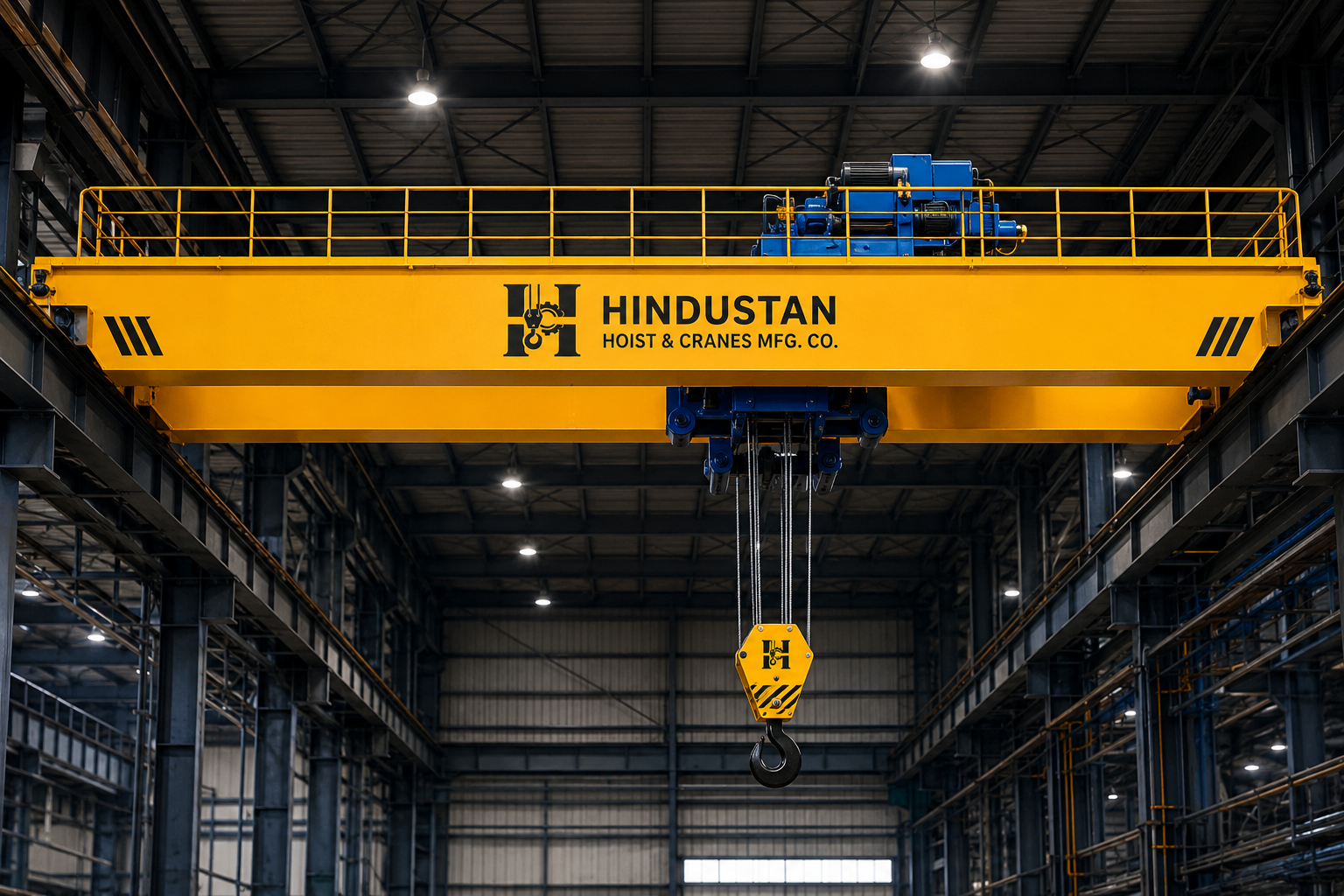

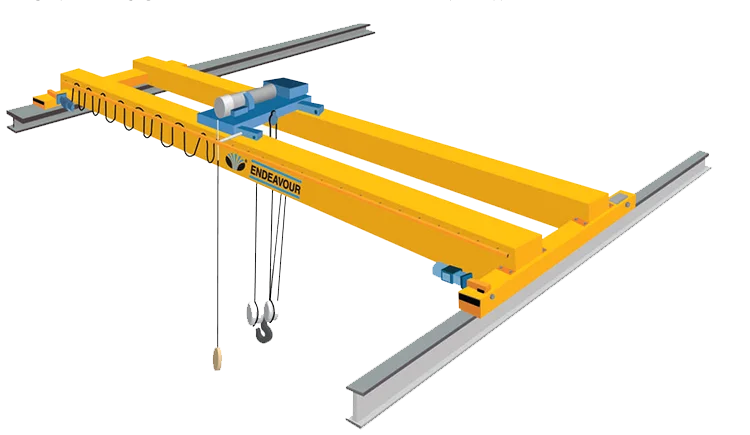

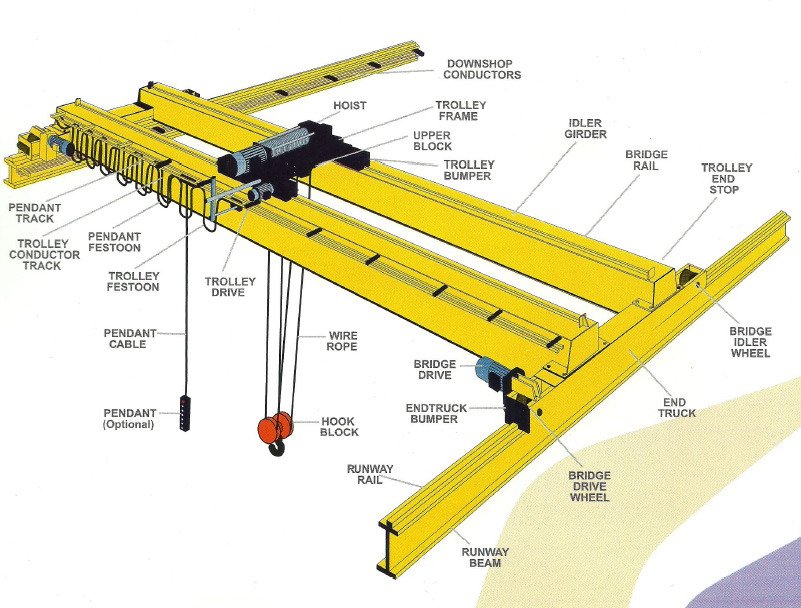

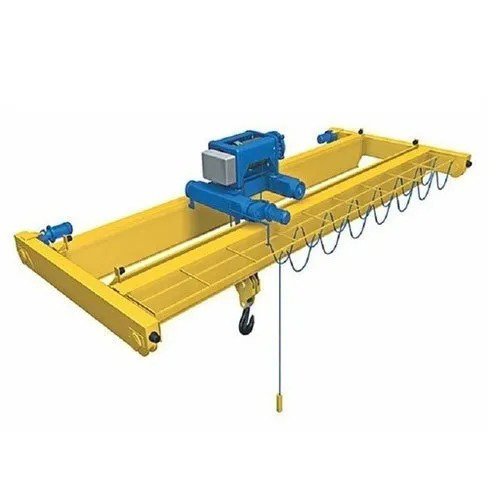

2. EOT Crane – Double Girder
Product Overview
Hindustan Hoist & Cranes Mfg. Co. manufactures premium-quality Double Girder Electric Overhead Travelling (EOT) Cranes engineered for heavy-duty material handling in demanding industrial environments. Designed in accordance with relevant Indian Standards, our Double Girder EOT Cranes provide maximum lifting capacity, higher hook approach, increased lifting height, excellent stability, and long-span coverage for continuous industrial operations.
Fabricated from high-grade Mild Steel using advanced manufacturing techniques, these cranes are suitable for handling heavy machinery, steel coils, fabricated structures, molten metal (with special design), containers, and other heavy industrial loads. The robust double-girder construction ensures superior structural strength, reduced deflection, and extended service life even under intensive duty cycles.
Our Double Girder EOT Cranes can be equipped with Electric Wire Rope Hoists or Open Winch Crab Trolleys, and are available in various lifting capacities, spans, lifting heights, and duty classifications. Customized designs are offered to meet specific application requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Double Girder EOT Crane |
| Crane Design | Box Girder / Plate Girder Construction |
| Safe Working Load (SWL) | 3 Ton to 100 Ton (Higher on Request) |
| Span | Up to 40 Meters |
| Lifting Height | As per Customer Requirement |
| Duty Classification | Class II, III & IV (IS 3177 / IS 807 / FEM Standards) |
| Hoisting Mechanism | Electric Wire Rope Hoist / Open Winch Crab |
| Cross Travel | Motorized |
| Long Travel | Motorized |
| Hoisting Speed | As per Duty Requirement |
| Cross Travel Speed | Variable / Standard |
| Long Travel Speed | Variable / Standard |
| Girder Construction | Welded Box Girder |
| Wheel Assembly | Forged Steel Wheels |
| Rail Type | IS Crane Rail / Square Bar Rail |
| Drive System | Geared Motor with Brake |
| Brake Type | Electromagnetic Fail-Safe Brake |
| Power Supply | 415V ±10%, 3 Phase, 50 Hz AC |
| Parameter | Specification |
|---|---|
| Control Voltage | 110V / 48V (Optional) |
| Control System | Pendant / Radio Remote / Cabin Control |
| Electrical Protection | IP55 Standard |
| Motor Insulation | Class F |
| Surface Finish | Epoxy Zinc Primer + PU Finish Paint |
| Standard Colour | Safety Yellow / Orange (Custom Colours Available) |
Standard Features
Design & Manufacturing Standards
- IS 3177 – Code of Practice for Electric Overhead Travelling Cranes
- IS 807 – Design, Manufacture, Erection & Testing of Cranes
- IS 800 – General Construction in Steel
- IS 2062 – Structural Steel
Standard Features
Structural Features
- Heavy-duty welded box girder construction
- High-strength Mild Steel fabrication
- Low deflection bridge design
- Precision machined end carriages
- Heavy-duty rail wheel assembly
- Large working span capability
- Optimized hook approach
- Robust industrial construction
- Long operational life
Mechanical Features
- Heavy-duty Electric Wire Rope Hoist / Winch Crab
- Precision gearbox drive system
- Alloy steel rope drum
- Hardened gear train
- Heavy-duty forged hook with safety latch
- Smooth trolley movement
- High lifting efficiency
- Low maintenance mechanism
Electrical Features
- Energy-efficient squirrel cage motors
- IP55 electrical protection
- Class F insulated motors
- Electromagnetic fail-safe brakes
- Heavy-duty electrical control panel
- Phase failure & phase reversal protection
- Limit switches
- Pendant Push Button Station
- Optional Wireless Radio Remote Control
- Optional VFD for smooth speed control
Safety Features
- Overload Protection System
- Upper & Lower Limit Switches
- Emergency Stop Button
- Electromagnetic Fail-Safe Brake
- Cross Travel & Long Travel Limit Switches (Optional)
- Anti-Collision System (Optional)
- Buffer Stops
- Rail Sweeps
- Safety Guards on Rotating Parts
- Factory Load Tested
- High Factor of Safety
Optional Features
- Open Winch Crab
- Electric Wire Rope Hoist
- Variable Frequency Drive (VFD)
- Dual Hoisting Speed
- Cabin Control
- Wireless Radio Remote Control
- Anti-Collision Device
- Load Cell & Digital Load Display
- Festoon Cable System
- DSL Bus Bar System
- Flameproof Electrical Components
- Weatherproof Design
- Walkway & Handrail
- Maintenance Platform
- Special Paint System
- Customized Span & Lifting Height
Standard Scope of Supply
- Double Girder Bridge Assembly
- End Carriages
- Electric Wire Rope Hoist / Winch Crab
- LT & CT Drive Mechanisms
- Electrical Control Panel
- Pendant Push Button Station
- Festoon / Cable System
- Buffer Assemblies
- Fasteners & Hardware
- Installation Drawings
- Operation & Maintenance Manual
- Routine Test Certificate
- Warranty Certificate
Applications
Hindustan Hoist & Cranes Mfg. Co. Double Girder EOT Cranes are widely used in:
- Steel Plants
- Engineering Industries
- Heavy Fabrication Workshops
- Automobile Manufacturing Units
- Cement Plants
- Power Plants
- Shipbuilding Yards
- Foundries
- Paper Mills
- Chemical Industries
- Warehouses
- Railway Workshops
- Infrastructure Projects
- Heavy Machinery Manufacturing
- Material Handling Facilities
Why Choose Hindustan Hoist & Cranes Mfg. Co.?
- Over 8+ Years of Manufacturing Excellence
- Heavy-Duty Double Girder Construction
- High Lifting Capacity up to 100 Ton & Above
- Premium Quality Components
- Smooth, Safe & Reliable Operation
- Precision Engineered Design
- Energy-Efficient Drive Systems
- Low Maintenance Cost
- Customized Engineering Solutions
- Timely Delivery
- Installation & Commissioning Support
- Excellent After-Sales Service
- Genuine Spare Parts Availability
Technical Advantages
- Suitable for very heavy lifting applications
- Higher hook approach and lifting height
- Long span capability
- Excellent structural rigidity
- Reduced girder deflection
- Smooth and precise load handling
- High operational reliability
- Continuous-duty performance
- Low maintenance requirements
- Long service life
Frequently Asked Questions (FAQs)
1. What is a Double Girder EOT Crane?
A Double Girder EOT Crane is an overhead crane consisting of two bridge girders that support the trolley and hoisting mechanism, enabling the lifting and movement of heavy loads across industrial workspaces.
2. What lifting capacities are available?
Our Double Girder EOT Cranes are available from 3 Ton to 100 Ton, with higher capacities available on request.
3. Which hoisting systems are available?
The crane can be supplied with an Electric Wire Rope Hoist or an Open Winch Crab, depending on the application and duty cycle.
4. Can the crane be customized?
Yes. We manufacture cranes with customized capacity, span, lifting height, travel speed, control system, duty classification, and structural design.
5. Which industries use Double Girder EOT Cranes?
These cranes are widely used in steel plants, fabrication industries, automobile manufacturing, power plants, engineering workshops, shipyards, foundries, warehouses, and heavy manufacturing units.
6. Which control options are available?
The crane can be operated using a Pendant Push Button Station, Wireless Radio Remote Control, or Operator Cabin, depending on operational requirements.
7. Do you provide installation and commissioning?
Yes. We provide complete installation, alignment, testing, commissioning, operator training, and technical support.
8. Are spare parts and maintenance services available?
Yes. We offer genuine spare parts, Annual Maintenance Contracts (AMC), preventive maintenance, inspections, modernization, and prompt after-sales service.
9. Can the crane be installed in existing industrial buildings?
Yes. Our engineering team evaluates the building structure and runway beams before recommending the most suitable crane configuration.
10. What safety features are included?
The crane is equipped with electromagnetic fail-safe brakes, overload protection, upper & lower limit switches, emergency stop, forged hooks with safety latch, buffer stops, and factory-tested safety systems, ensuring reliable and safe operation under demanding industrial conditions.
3.Underslung EOT Crane
Product Overview
Hindustan Hoist & Cranes Mfg. Co. manufactures premium-quality Underslung Electric Overhead Travelling (EOT) Cranes, specially designed for facilities where conventional top-running cranes cannot be installed due to structural or space limitations. Suspended from the underside of the building runway beams, these cranes maximize floor space while providing smooth, efficient, and reliable material handling.
Manufactured using high-grade Mild Steel (MS) and advanced engineering practices, our Underslung EOT Cranes offer excellent structural strength, smooth travel, accurate load positioning, and long operational life. Their compact design makes them ideal for light to medium-duty lifting applications, allowing full utilization of available workspace.
These cranes can be equipped with Electric Chain Hoists or Electric Wire Rope Hoists and are available in various capacities, spans, lifting heights, and travel lengths. Customized solutions are offered to suit specific industrial applications and building structures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Underslung EOT Crane |
| Crane Design | Single Girder Suspended Type |
| Safe Working Load (SWL) | 500 kg to 10 Ton |
| Span | Up to 20 Meters |
| Lifting Height | As per Site Requirement |
| Duty Classification | Class I, II & III (IS 3177 / IS 807 / FEM Standards) |
| Hoist Type | Electric Chain Hoist / Electric Wire Rope Hoist |
| Hoisting Speed | As per Hoist Selection |
| Cross Travel | Motorized |
| Long Travel | Motorized |
| Crane Mounting | Suspended from Building Runway Beams |
| Girder Construction | Welded Box Girder / Rolled Section |
| Wheel Assembly | Hardened Steel Wheels |
| Drive System | Geared Motor with Electromagnetic Brake |
| Power Supply | 415V ±10%, 3 Phase, 50 Hz AC |
| Control Voltage | 110V / 48V (Optional) |
| Control System | Pendant Push Button / Wireless Radio Remote Control |
| Electrical Protection | IP55 |
| Motor Insulation | Class F |
| Surface Finish | Epoxy Zinc Primer with Industrial PU Paint |
| Standard Colours | Safety Yellow / Orange (Custom Colours Available) |
Design & Manufacturing Standards
- IS 3177 – Code of Practice for Electric Overhead Travelling Cranes
- IS 807 – Design, Manufacture, Erection & Testing of Cranes
- IS 2062 – Structural Steel
- IS 800 – General Construction in Steel
Standard Features
Structural Features
- Compact suspended crane design
- Heavy-duty fabricated bridge girder
- Optimized headroom construction
- Precision machined end carriages
- Robust wheel assembly
- Lightweight yet rigid structure
- Smooth crane movement
- Long service life
Mechanical Features
- Electric Chain Hoist or Wire Rope Hoist
- Heavy-duty geared drive system
- Precision trolley arrangement
- Smooth cross travel mechanism
- High-strength forged hook with safety latch
- Efficient lifting performance
- Low maintenance mechanism
Electrical Features
- Energy-efficient motors
- Electromagnetic fail-safe brake
- IP55 electrical protection
- Class F insulated motors
- Heavy-duty electrical control panel
- Pendant Push Button Station
- Optional Wireless Radio Remote Control
- Phase failure & phase reversal protection
- Optional Variable Frequency Drive (VFD)
Safety Features
- Overload Protection System
- Upper & Lower Limit Switches
- Emergency Stop Button
- Electromagnetic Brake
- Heavy-duty End Stops
- Buffer Assemblies
- Safety Hook with Latch
- Factory Load Tested
- High Safety Factor
- Reliable Suspension System
Optional Features
- Electric Wire Rope Hoist
- Electric Chain Hoist
- Variable Frequency Drive (VFD)
- Dual Hoisting Speed
- Wireless Radio Remote Control
- Load Limiter
- Digital Load Display
- Festoon Cable System
- DSL Bus Bar System
- Flameproof Electrical Components
- Weatherproof Design
- Anti-Corrosion Paint System
- Customized Span
- Customized Lifting Height
Standard Scope of Supply
- Underslung Bridge Girder
- End Carriages
- Electric Hoist
- Cross Travel & Long Travel Drive
- Electrical Control Panel
- Pendant Push Button Station
- Festoon Cable System
- Buffer Assemblies
- Fasteners & Hardware
- Installation Drawings
- Operation & Maintenance Manual
- Routine Test Certificate
- Warranty Certificate
Applications
Hindustan Hoist & Cranes Mfg. Co. Underslung EOT Cranes are widely used in:
- Manufacturing Industries
- Engineering Workshops
- Warehouses
- Assembly Lines
- Automobile Industries
- Machine Shops
- Fabrication Units
- Maintenance Workshops
- Packaging Industries
- Textile Industries
- Food Processing Plants
- Pharmaceutical Industries
- Logistics Centers
- Material Handling Systems
- Production Facilities
Why Choose Hindustan Hoist & Cranes Mfg. Co.?
- Over 8+ Years of Manufacturing Experience
- Space-Saving Suspended Crane Design
- Heavy-Duty Mild Steel Construction
- Premium Quality Components
- Smooth & Reliable Operation
- Excellent Load Positioning
- High Operational Safety
- Low Maintenance Cost
- Energy-Efficient Performance
- Competitive Pricing
- Timely Delivery
- Installation & Commissioning Support
- Reliable After-Sales Service
- Genuine Spare Parts Availability
- Customized Engineering Solutions
Technical Advantages
- Ideal for buildings with limited headroom
- Suspended design maximizes floor space
- Smooth and precise load handling
- Lightweight yet robust construction
- Easy installation on existing runway beams
- Low structural load on the building
- Suitable for continuous industrial operation
- Energy-efficient performance
- Minimal maintenance requirements
- Long operational service life
Frequently Asked Questions (FAQs)
1. What is an Underslung EOT Crane?
An Underslung EOT Crane is a suspended overhead crane that travels beneath runway beams, making it ideal for buildings with limited headroom or where top-running cranes cannot be installed.
2. What lifting capacities are available?
Our Underslung EOT Cranes are available in capacities ranging from 500 kg to 10 Ton, with customized capacities available on request.
3. Which hoists can be used?
The crane can be fitted with an Electric Chain Hoist or an Electric Wire Rope Hoist, depending on the application and lifting capacity.
4. Can the crane be customized?
Yes. We offer customized capacity, span, lifting height, travel length, control system, duty classification, and paint finish to meet specific project requirements.
5. Which industries commonly use Underslung EOT Cranes?
These cranes are widely used in engineering workshops, warehouses, production facilities, assembly lines, fabrication shops, automobile industries, logistics centers, and manufacturing plants.
6. Which control options are available?
The crane can be operated using a Pendant Push Button Station or an Optional Wireless Radio Remote Control.
7. Do you provide installation and commissioning?
Yes. We provide complete installation, testing, commissioning, operator training, and technical support for all our crane systems.
8. Are spare parts and after-sales services available?
Yes. We offer genuine spare parts, preventive maintenance, Annual Maintenance Contracts (AMC), inspections, and prompt after-sales service.
9. Can the crane be installed in existing buildings?
Yes. Our engineering team evaluates the existing building structure and runway beams to ensure safe and efficient crane installation.
10. What safety features are included?
The crane is equipped with electromagnetic fail-safe brakes, overload protection, upper & lower limit switches, emergency stop, forged hooks with safety latch, end buffers, and factory-tested safety systems to ensure safe and reliable material handling.
4. HOT Crane (Hand Operated Overhead Traveling Crane)
Product Overview
Hindustan Hoist & Cranes Mfg. Co. manufactures high-quality Hand Operated Overhead Traveling (HOT) Cranes, designed to provide a cost-effective and reliable material handling solution where electrical operation is not required or power availability is limited. Operated entirely by manual effort, HOT Cranes are ideal for light to medium-duty lifting applications in workshops, warehouses, maintenance facilities, and small manufacturing units.
Fabricated using premium-grade Mild Steel (MS) and precision engineering techniques, our HOT Cranes offer smooth manual operation, excellent load handling, robust construction, and long service life. The crane travels manually along the runway while the hoist trolley is operated using a geared mechanism for precise load positioning.
Our Hand Operated Overhead Traveling Cranes are available in a wide range of lifting capacities, spans, and lifting heights, and can be equipped with Manual Chain Pulley Blocks or Geared Trolleys. Customized designs are available to suit individual application requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Hand Operated Overhead Traveling (HOT) Crane |
| Crane Type | Single Girder Manual Overhead Crane |
| Safe Working Load (SWL) | 500 kg to 10 Ton |
| Span | Up to 20 Meters |
| Lifting Height | As per Site Requirement |
| Operation | Fully Manual |
| Hoist Type | Manual Chain Pulley Block |
| Trolley Type | Geared Trolley / Push Pull Trolley |
| Cross Travel | Manual |
| Long Travel | Manual |
| Girder Construction | Welded Box Girder / Rolled Steel Section |
| End Carriages | Fabricated Mild Steel |
| Wheel Assembly | Hardened Steel Wheels |
| Bearings | Heavy-Duty Anti-Friction Bearings |
| Duty Classification | IS 3177 / IS 807 |
| Surface Finish | Epoxy Zinc Primer with Industrial PU Paint |
| Standard Colours | Safety Yellow / Orange (Custom Colours Available) |
Design & Manufacturing Standards
- IS 3177 – Code of Practice for Electric Overhead Travelling Cranes
- IS 807 – Design, Manufacture, Erection & Testing of Cranes
- IS 2062 – Structural Steel
- IS 800 – General Construction in Steel
Standard Features
Structural Features
- Heavy-duty fabricated bridge girder
- Robust end carriage construction
- Precision-machined wheel assembly
- Compact and space-saving design
- High structural rigidity
- Smooth manual crane travel
- Durable industrial construction
- Long operational life
Mechanical Features
- Manual Chain Pulley Block
- Geared or Push Pull Trolley
- Smooth manual cross travel
- Manual long travel mechanism
- High-strength forged hook with safety latch
- Precision load positioning
- Heavy-duty geared transmission
- Maintenance-friendly construction
Safety Features
- High-strength forged hook with safety latch
- Heavy-duty geared trolley mechanism
- Precision wheel alignment
- Anti-drop trolley design
- Factory load tested
- Rugged structural design
- High factor of safety
- Reliable manual braking through chain block mechanism
Optional Features
- Geared Trolley
- Push Pull Trolley
- Stainless Steel Components
- Corrosion Resistant Paint System
- Special Paint Shade
- Spark Resistant Components
- Flameproof Manual Components
- Walkway & Maintenance Platform
- Customized Span
- Customized Lifting Height
- Customized Load Capacity
Standard Scope of Supply
- Single Girder Bridge
- End Carriages
- Manual Chain Pulley Block
- Geared / Push Pull Trolley
- Crane Wheels
- Fasteners & Hardware
- Installation Drawings
- Operation & Maintenance Manual
- Routine Test Certificate
- Warranty Certificate
Applications
Hindustan Hoist & Cranes Mfg. Co. HOT Cranes are widely used in:
- Engineering Workshops
- Manufacturing Industries
- Warehouses
- Maintenance Workshops
- Machine Shops
- Fabrication Units
- Automobile Service Stations
- Power Plants
- Steel Fabrication Shops
- Cement Plants
- Packaging Industries
- Educational & Training Workshops
- Small Industrial Units
- Material Handling Areas
Why Choose Hindustan Hoist & Cranes Mfg. Co.?
- Over 8+ Years of Manufacturing Experience
- Heavy-Duty Mild Steel Construction
- No Electrical Power Required
- Smooth & Reliable Manual Operation
- Low Maintenance Cost
- Easy Installation
- High Operational Safety
- Premium Quality Components
- Competitive Pricing
- Timely Delivery
- Genuine Spare Parts Availability
- Complete Technical Support
- Customized Engineering Solutions
Technical Advantages
- Operates without electricity
- Economical material handling solution
- Smooth manual crane and trolley movement
- Ideal for low-duty and maintenance applications
- Heavy-duty fabricated construction
- Easy operation and maintenance
- High reliability
- Low operating cost
- Long service life
- Suitable for indoor industrial applications
Design & Manufacturing Standards
- IS 3177 – Code of Practice for Electric Overhead Travelling Cranes
- IS 807 – Design, Manufacture, Erection & Testing of Cranes
- IS 2062 – Structural Steel
- IS 800 – General Construction in Steel
Structural Features
- Heavy-duty fabricated bridge girder
- Robust end carriage construction
- Precision-machined wheel assembly
- Compact and space-saving design
- High structural rigidity
- Smooth manual crane travel
- Durable industrial construction
- Long operational life
Mechanical Features
- Manual Chain Pulley Block
- Geared or Push Pull Trolley
- Smooth manual cross travel
- Manual long travel mechanism
- High-strength forged hook with safety latch
- Precision load positioning
- Heavy-duty geared transmission
- Maintenance-friendly construction
Safety Features
- High-strength forged hook with safety latch
- Heavy-duty geared trolley mechanism
- Precision wheel alignment
- Anti-drop trolley design
- Factory load tested
- Rugged structural design
- High factor of safety
- Reliable manual braking through chain block mechanism
Frequently Asked Questions (FAQs)
1. What is an Underslung EOT Crane?
An Underslung EOT Crane is a suspended overhead crane that travels beneath runway beams, making it ideal for buildings with limited headroom or where top-running cranes cannot be installed.
2. What lifting capacities are available?
Our Underslung EOT Cranes are available in capacities ranging from 500 kg to 10 Ton, with customized capacities available on request.
3. Which hoists can be used?
The crane can be fitted with an Electric Chain Hoist or an Electric Wire Rope Hoist, depending on the application and lifting capacity.
4. Can the crane be customized?
Yes. We offer customized capacity, span, lifting height, travel length, control system, duty classification, and paint finish to meet specific project requirements.
5. Which industries commonly use Underslung EOT Cranes?
These cranes are widely used in engineering workshops, warehouses, production facilities, assembly lines, fabrication shops, automobile industries, logistics centers, and manufacturing plants.
6. Which control options are available?
The crane can be operated using a Pendant Push Button Station or an Optional Wireless Radio Remote Control.
7. Do you provide installation and commissioning?
Yes. We provide complete installation, testing, commissioning, operator training, and technical support for all our crane systems.
8. Are spare parts and after-sales services available?
Yes. We offer genuine spare parts, preventive maintenance, Annual Maintenance Contracts (AMC), inspections, and prompt after-sales service.
9. Can the crane be installed in existing buildings?
Yes. Our engineering team evaluates the existing building structure and runway beams to ensure safe and efficient crane installation.
10. What safety features are included?
The crane is equipped with electromagnetic fail-safe brakes, overload protection, upper & lower limit switches, emergency stop, forged hooks with safety latch, end buffers, and factory-tested safety systems to ensure safe and reliable material handling.
Hindustan Hoist & Cranes Mfg. Co.
Gala No.G/5, Survey No.32/1, Quraishi Indl. Estate, Chinchoti, Vasai (E)., Dist. Palghar-401 208. Maharashtra India
Phone
91 7558447783
Email/website
hindustan.hoist@yahoo.com info@hindustanhoist.com https://hindustanhoist.com/
