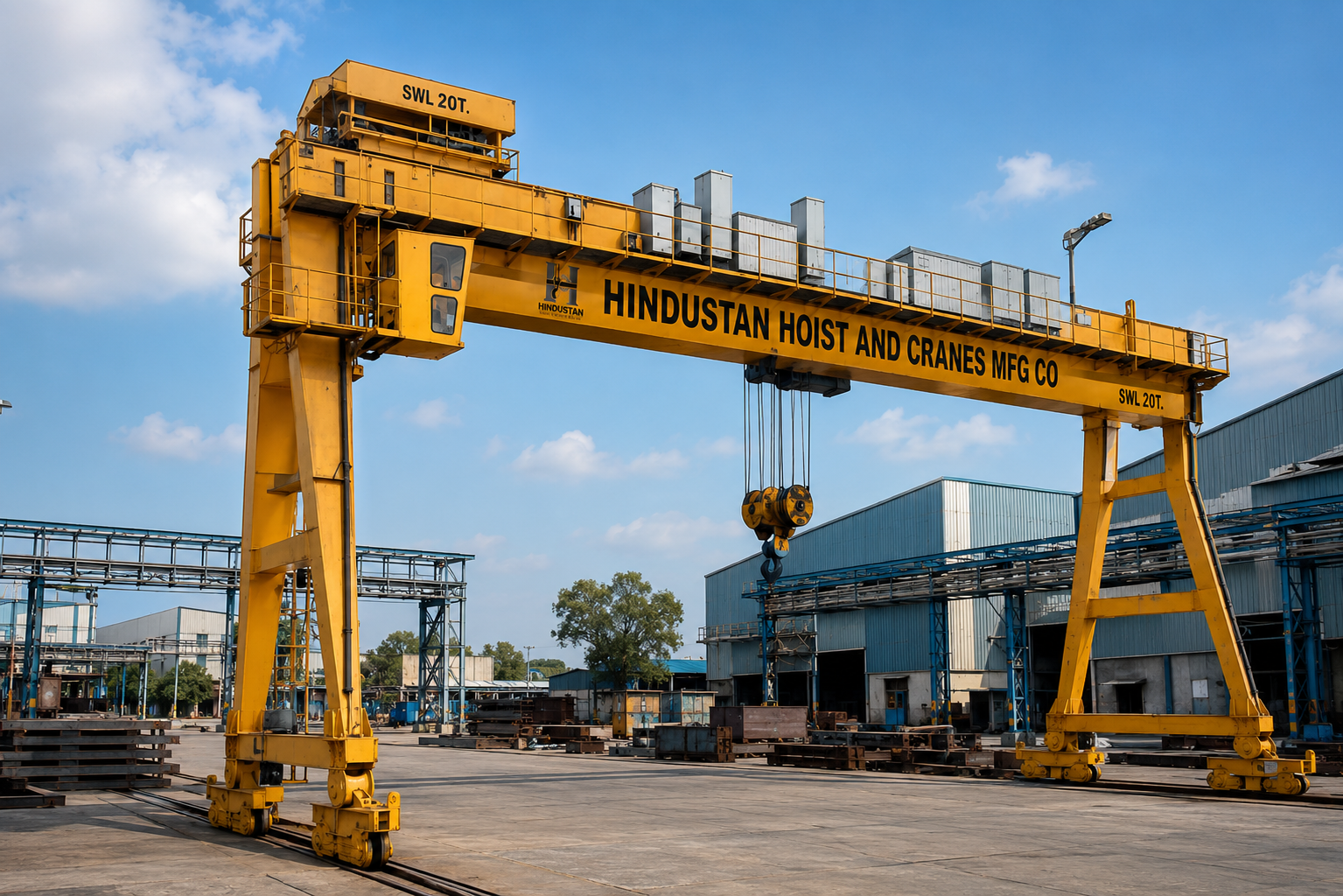

Goliath Gantry Crane
Product Overview
Hindustan Hoist & Cranes Mfg. Co. manufactures high-performance Goliath Gantry Cranes, engineered for heavy-duty outdoor and indoor material handling applications where overhead runway structures are not practical. Running on ground-mounted rails, these cranes provide an economical and efficient solution for lifting and transporting heavy loads over large working areas.
Manufactured using premium-grade Mild Steel (MS) and advanced fabrication technology, our Goliath Gantry Cranes are designed for high load capacity, exceptional structural stability, smooth travel, precise load handling, and long operational life. The crane is supported on robust gantry legs and travels on rail-mounted end carriages, making it ideal for handling oversized and heavy materials across production facilities and open yards.
Our Goliath Gantry Cranes can be equipped with Electric Wire Rope Hoists or Open Winch Crab Trolleys and are available in various lifting capacities, spans, lifting heights, and duty classifications. Customized solutions are provided to suit specific operational and site requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Goliath Gantry Crane |
| Crane Type | Single Girder / Double Girder Gantry Crane |
| Safe Working Load (SWL) | 3 Ton to 200 Ton (Higher on Request) |
| Span | Up to 40 Meters |
| Lifting Height | As per Site Requirement |
| Hoist Type | Electric Wire Rope Hoist / Open Winch Crab |
| Hoisting Speed | As per Application Requirement |
| Cross Travel | Motorized |
| Long Travel | Motorized |
| Gantry Leg Construction | Heavy-Duty Fabricated Steel |
| Bridge Girder | Box Girder / Plate Girder |
| Rail Type | Ground Mounted Crane Rail |
| Wheel Assembly | Forged Steel Wheels |
| Drive System | Geared Motor with Electromagnetic Brake |
| Duty Classification | Class II, III & IV (IS 3177 / FEM Standards) |
| Power Supply | 415V ±10%, 3 Phase, 50 Hz AC |
| Control System | Pendant Push Button / Wireless Radio Remote / Cabin Control |
| Electrical Protection | IP55 |
| Motor Insulation | Class F |
| Surface Finish | Epoxy Zinc Primer with Industrial PU Paint |
| Standard Colours | Safety Yellow / Orange (Custom Colours Available) |
Standard Features
Design & Manufacturing Standards
- IS 3177 – Code of Practice for Electric Overhead Travelling Cranes
- IS 807 – Design, Manufacture, Erection & Testing of Cranes
- IS 2062 – Structural Steel
- IS 800 – General Construction in Steel
Structural Features
- Heavy-duty fabricated gantry structure
- High-strength box girder construction
- Robust gantry legs with reinforced bracing
- Precision machined end carriages
- Heavy-duty forged wheel assemblies
- Low deflection bridge design
- Excellent structural rigidity
- Long service life
Mechanical Features
- Electric Wire Rope Hoist or Open Winch Crab
- Heavy-duty geared drive system
- Precision trolley movement
- Smooth cross travel and long travel
- High-strength forged hook with safety latch
- High lifting efficiency
- Low maintenance mechanism
Electrical Features
- Energy-efficient motors
- Electromagnetic fail-safe brakes
- IP55 protected electrical components
- Class F insulated motors
- Heavy-duty electrical control panel
- Pendant Push Button Station
- Optional Wireless Radio Remote Control
- Optional Operator Cabin
- Optional Variable Frequency Drive (VFD)
Safety Features
- Overload Protection System
- Upper & Lower Limit Switches
- Emergency Stop Button
- Electromagnetic Fail-Safe Brake
- Rail Sweeps
- End Buffers
- Storm Locking Device (Optional)
- Anti-Collision System (Optional)
- Forged Hook with Safety Latch
- Factory Load Tested
- High Factor of Safety
Optional Features
- Open Winch Crab
- Electric Wire Rope Hoist
- Variable Frequency Drive (VFD)
- Dual Hoisting Speed
- Cabin Control
- Wireless Radio Remote Control
- Load Limiter
- Digital Load Display
- Festoon Cable System
- DSL Bus Bar System
- Weatherproof Electrical Panel
- Storm Lock System
- Wind Speed Indicator
- Walkway & Maintenance Platform
- Flameproof Electrical Components
- Customized Span
- Customized Lifting Height
- Special Paint System
Standard Scope of Supply
- Gantry Bridge Assembly
- Gantry Legs
- End Carriages
- Electric Wire Rope Hoist / Open Winch Crab
- LT & CT Drive Mechanisms
- Electrical Control Panel
- Pendant Push Button Station
- Cable Festoon System
- Buffer Assemblies
- Fasteners & Hardware
- Installation Drawings
- Operation & Maintenance Manual
- Routine Test Certificate
- Warranty Certificate
Applications
Hindustan Hoist & Cranes Mfg. Co. Goliath Gantry Cranes are widely used in:
- Steel Plants
- Shipyards
- Ports & Harbours
- Railway Workshops
- Heavy Engineering Industries
- Precast Concrete Yards
- Infrastructure Projects
- Power Plants
- Cement Plants
- Fabrication Workshops
- Warehouses
- Container Yards
- Construction Sites
- Windmill Component Manufacturing
- Material Handling Yards
Why Choose Hindustan Hoist & Cranes Mfg. Co.?
- Over 8+ Years of Manufacturing Experience
- Heavy-Duty Gantry Construction
- High Load Carrying Capacity
- Premium Quality Components
- Smooth & Reliable Operation
- Suitable for Indoor & Outdoor Applications
- Low Maintenance Cost
- Energy-Efficient Drive Systems
- High Operational Safety
- Competitive Pricing
- Timely Delivery
- Installation & Commissioning Support
- Reliable After-Sales Service
- Genuine Spare Parts Availability
- Customized Engineering Solutions
Technical Advantages
- No building runway structure required
- Ideal for outdoor heavy-duty operations
- Large span and lifting height capability
- Smooth rail-mounted travel
- Excellent structural stability
- Suitable for continuous industrial duty
- Precision load handling
- Low maintenance requirements
- Long operational service life
- Designed for harsh working environments
Frequently Asked Questions (FAQs)
1. What is a Goliath Gantry Crane?
A Goliath Gantry Crane is a rail-mounted gantry crane supported by legs running on ground-mounted rails, designed for lifting and transporting heavy materials in open yards, industrial plants, ports, and large fabrication facilities.
2. What lifting capacities are available?
Our Goliath Gantry Cranes are available from 1 Ton to 100 Ton, with higher capacities available on request.
3. Which hoisting systems are available?
The crane can be equipped with an Electric Wire Rope Hoist or an Open Winch Crab, depending on the lifting capacity and operational requirements.
4. Can the crane be customized?
Yes. We offer customized capacity, span, lifting height, travel speed, control systems, duty classification, and structural design to suit specific applications.
5. Which industries use Goliath Gantry Cranes?
These cranes are widely used in shipyards, ports, railway workshops, steel plants, heavy engineering industries, precast yards, power plants, construction projects, and material handling yards.
6. Which control options are available?
The crane can be operated using a Pendant Push Button Station, Wireless Radio Remote Control, or Operator Cabin, depending on operational requirements.
7. Do you provide installation and commissioning services?
Yes. We provide complete installation, alignment, testing, commissioning, operator training, and technical support.
8. Are spare parts and maintenance services available?
Yes. We provide genuine spare parts, Annual Maintenance Contracts (AMC), preventive maintenance, inspections, and prompt after-sales service.
9. Can the crane operate outdoors?
Yes. Our Goliath Gantry Cranes are specifically designed for outdoor as well as indoor applications and can be supplied with weatherproof electrical systems, corrosion-resistant coatings, and optional storm protection devices.
10. What safety features are included?
The crane is equipped with electromagnetic fail-safe brakes, overload protection, upper & lower limit switches, emergency stop, forged hooks with safety latch, rail sweeps, end buffers, and factory-tested safety systems, ensuring safe and reliable operation in demanding industrial environments.
