Portable Gantry Crane
Product Overview

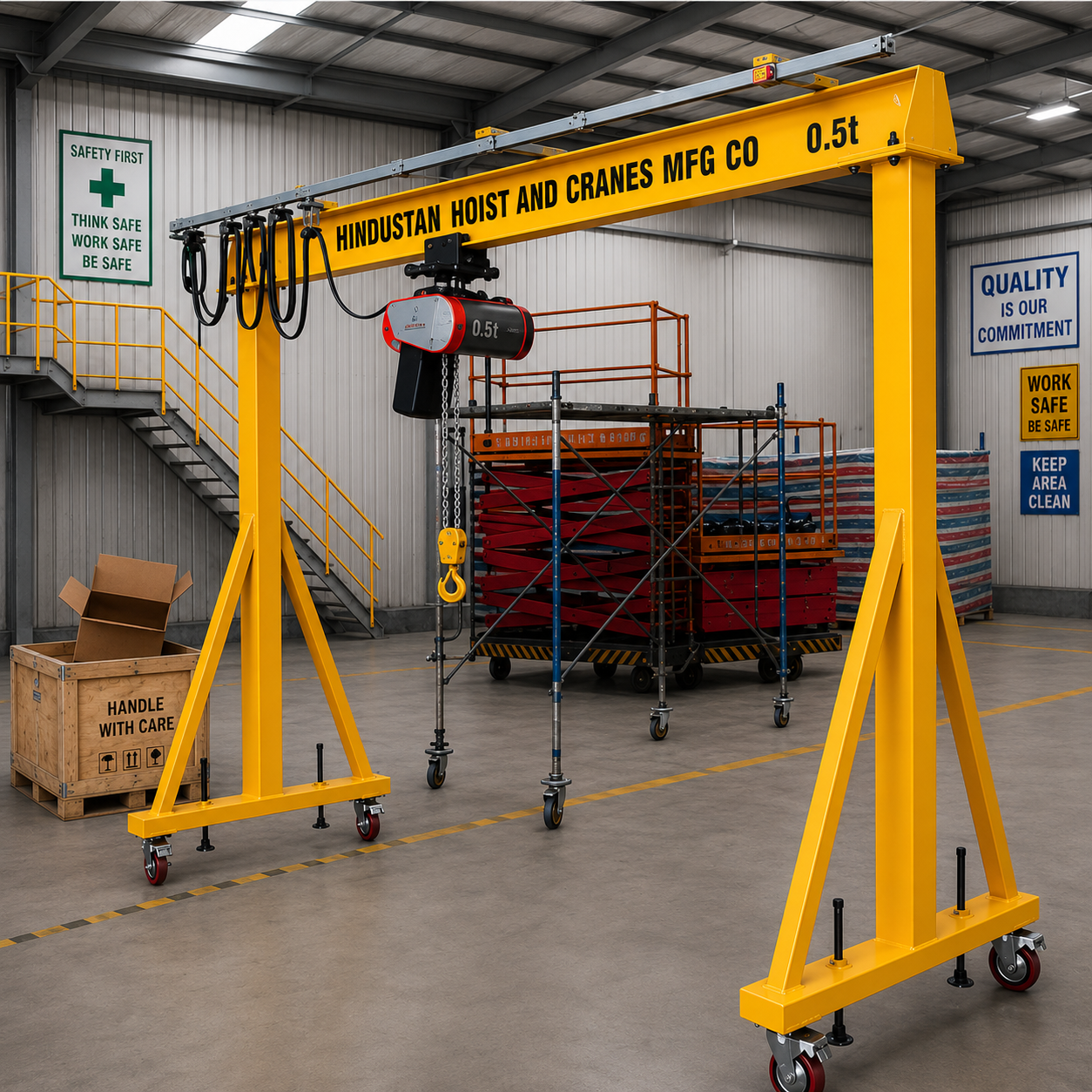

Hindustan Hoist & Cranes Mfg. Co. manufactures premium-quality Portable Gantry Cranes, designed to provide a versatile, mobile, and economical lifting solution for a wide range of material handling applications. Engineered for easy movement and quick installation, these cranes are ideal for workshops, warehouses, maintenance departments, fabrication shops, machine loading, and locations where permanent overhead crane systems are not feasible.
Manufactured using high-grade Mild Steel (MS) and precision fabrication techniques, our Portable Gantry Cranes offer excellent structural stability, smooth mobility, reliable lifting performance, and long service life. The crane is mounted on heavy-duty swivel or fixed caster wheels, allowing it to be easily relocated within the work area. Its modular design enables quick assembly, dismantling, and transportation.
Our Portable Gantry Cranes are compatible with Electric Chain Hoists, Electric Wire Rope Hoists, and Manual Chain Pulley Blocks. They are available in various lifting capacities, spans, lifting heights, and wheel configurations, with complete customization to suit individual application requirements.
Product Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Portable Gantry Crane |
| Crane Type | Mobile Single Girder Gantry Crane |
| Safe Working Load (SWL) | 250 kg to 10 Ton |
| Span | Up to 8 Meters |
| Lifting Height | Up to 8 Meters (Customizable) |
| Overall Height | As per Site Requirement |
| Hoist Type | Electric Chain Hoist / Electric Wire Rope Hoist / Manual Chain Pulley Block |
| Trolley Type | Push Pull / Geared / Motorized |
| Beam Construction | ISMB / Box Girder |
| Leg Construction | Fabricated Mild Steel |
| Wheel Type | Swivel Castor Wheels / Fixed Wheels |
| Wheel Material | Polyurethane / Nylon / Cast Iron / Steel |
| Mobility | Manual Push / Motorized (Optional) |
| Brake System | Wheel Locking Arrangement |
| Duty Classification | IS 3177 / FEM Standards |
| Surface Finish | Epoxy Zinc Primer with Industrial PU Paint |
| Standard Colours | Safety Yellow / Orange (Custom Colours Available) |
Standard Features
Design & Manufacturing Standards
- IS 3177 – Code of Practice for Overhead & Gantry Cranes
- IS 807 – Design, Manufacture, Erection & Testing of Cranes
- IS 2062 – Structural Steel
- IS 800 – General Construction in Steel
Structural Features
- Heavy-duty fabricated gantry frame
- High-strength bridge beam
- Reinforced leg construction
- Modular knock-down design
- Excellent structural rigidity
- Compact and portable configuration
- Durable industrial construction
- Long operational life
Mechanical Features
- Compatible with Electric Chain Hoists
- Compatible with Electric Wire Rope Hoists
- Compatible with Manual Chain Pulley Blocks
- Push Pull, Geared, or Motorized Trolley options
- Smooth trolley movement
- Heavy-duty wheel assemblies
- Precision load handling
- Easy relocation within the workplace
Mobility Features
- Heavy-duty swivel caster wheels
- Wheel locking mechanism
- Smooth floor movement
- Portable and reusable design
- Quick assembly and dismantling
- Suitable for multiple workstations
Safety Features
- High-strength forged hook with safety latch
- Heavy-duty wheel locking brakes
- Stable wide-base construction
- Anti-tip structural design
- Precision engineered load-bearing frame
- Factory load tested
- High factor of safety
- Safe and reliable lifting operation
Optional Features
- Electric Chain Hoist
- Electric Wire Rope Hoist
- Manual Chain Pulley Block
- Geared Trolley
- Motorized Trolley
- Adjustable Height Design
- Motorized Travel System
- VFD Control
- Wireless Radio Remote Control
- Stainless Steel Construction
- Galvanized Finish
- Weatherproof Design
- Customized Span
- Customized Height
- Customized Capacity
- Special Paint Shade
Standard Scope of Supply
- Portable Gantry Frame
- Bridge Beam
- Support Legs
- Wheel Assemblies
- Hoist (If Ordered)
- Trolley (As Selected)
- Fasteners & Hardware
- Installation Drawings
- Operation & Maintenance Manual
- Routine Test Certificate
- Warranty Certificate
Applications
Hindustan Hoist & Cranes Mfg. Co. Portable Gantry Cranes are widely used in:
- Engineering Workshops
- Manufacturing Industries
- Warehouses
- Maintenance Departments
- Fabrication Shops
- Automobile Workshops
- Machine Installation
- CNC Machine Loading
- Tool Rooms
- Power Plants
- Steel Industries
- Packaging Industries
- Construction Sites
- Logistics Centers
- Material Handling Operations
Why Choose Hindustan Hoist & Cranes Mfg. Co.?
- Over 8+ Years of Manufacturing Experience
- Portable & Space-Saving Design
- Heavy-Duty Mild Steel Construction
- Smooth and Stable Mobility
- Premium Quality Components
- High Operational Safety
- Easy Installation & Relocation
- Low Maintenance Cost
- Energy-Efficient Operation
- Competitive Pricing
- Timely Delivery
- Reliable After-Sales Service
- Genuine Spare Parts Availability
- Customized Engineering Solutions
Technical Advantages
- Easily movable between workstations
- No permanent installation required
- Quick assembly and dismantling
- Suitable for indoor and outdoor applications
- Compatible with multiple hoist types
- Excellent load stability
- Smooth trolley operation
- Low maintenance requirements
- Cost-effective lifting solution
- Long operational service life
Frequently Asked Questions (FAQs)
1. What is a Portable Gantry Crane?
A Portable Gantry Crane is a mobile lifting system supported by free-standing legs mounted on wheels, allowing it to be easily moved between different work locations without requiring permanent runway structures.
2. What lifting capacities are available?
Our Portable Gantry Cranes are available in capacities ranging from 250 kg to 10 Ton, with higher capacities available on request.
3. Which hoists can be installed?
The crane can be equipped with an Electric Chain Hoist, Electric Wire Rope Hoist, or Manual Chain Pulley Block, depending on the application and lifting requirements.
4. Can the crane be customized?
Yes. We offer customized lifting capacities, spans, lifting heights, wheel types, trolley options, and structural configurations to meet specific customer requirements.
5. Which industries use Portable Gantry Cranes?
They are widely used in manufacturing plants, engineering workshops, warehouses, fabrication shops, maintenance departments, construction sites, logistics centers, and machine installation projects.
6. Is the crane easy to move?
Yes. The crane is fitted with heavy-duty swivel or fixed caster wheels with locking brakes, allowing safe and easy movement between workstations.
7. Do you provide installation and commissioning services?
Yes. We provide installation guidance, testing, commissioning support, and operator training wherever required.
8. Are spare parts and after-sales service available?
Yes. We supply genuine spare parts, preventive maintenance services, inspections, and prompt after-sales support to ensure reliable long-term performance.
9. Can the crane be used outdoors?
Yes. Outdoor models can be supplied with weatherproof finishes, corrosion-resistant coatings, galvanized components, and special paint systems for enhanced durability.
10. What safety features are provided?
Our Portable Gantry Cranes are equipped with wheel locking brakes, heavy-duty structural frames, forged hooks with safety latches, stable wide-base construction, and factory-tested safety systems, ensuring safe and efficient lifting operations.
