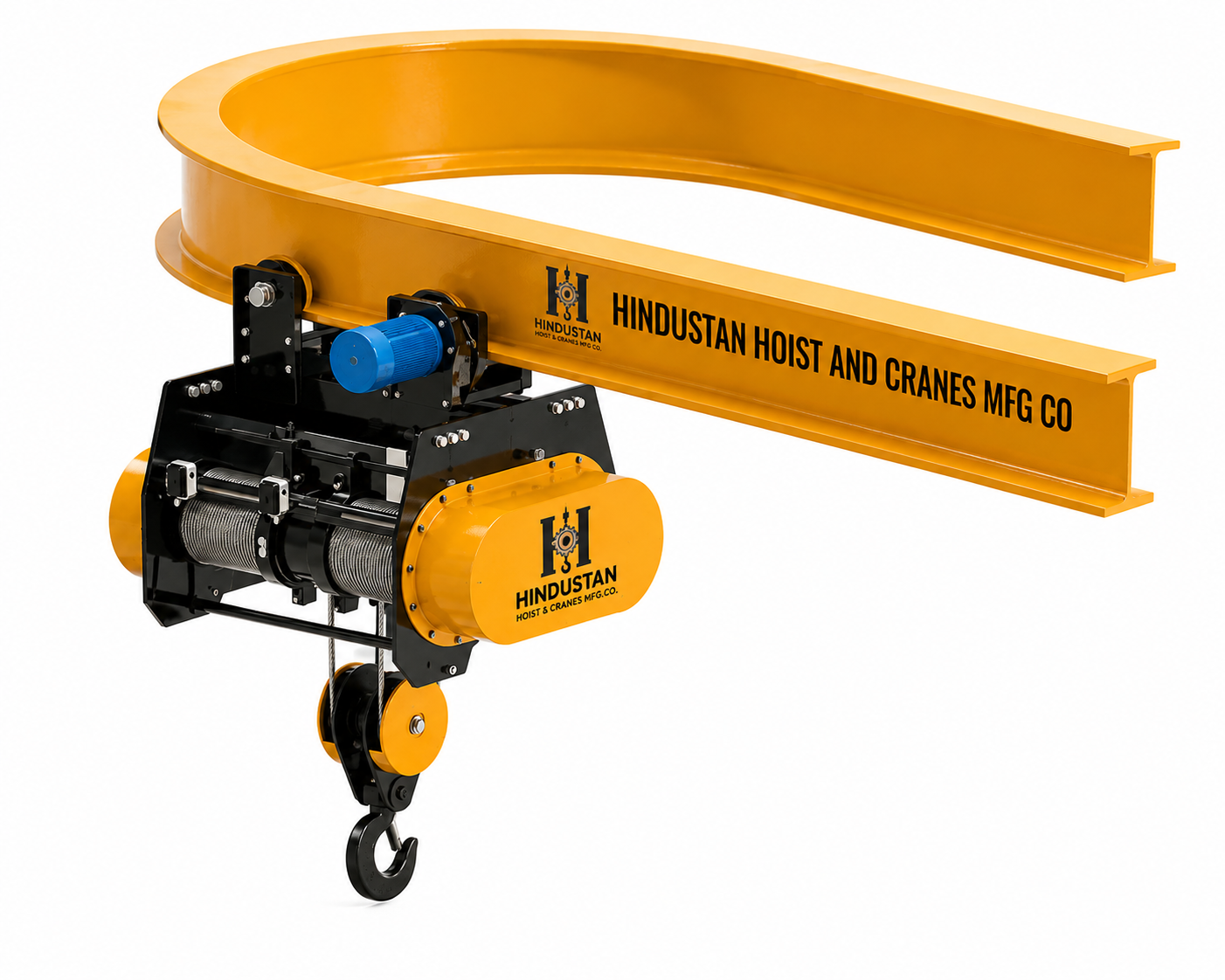

Monorail Hoist
Product Overview
Hindustan Hoist & Cranes Mfg. Co. manufactures high-performance Monorail Hoists designed for efficient, safe, and continuous material handling along a fixed overhead runway. These systems provide a cost-effective and space-saving solution for transporting loads between designated workstations, making them ideal for production lines, warehouses, fabrication shops, assembly units, and manufacturing facilities.
Our Monorail Hoists can be supplied with Wire Rope Electric Hoists or Electric Chain Hoists, mounted on a Motorized, Geared, or Push Pull Trolley, depending on application requirements. Engineered using premium-quality materials and precision-manufactured components, they offer smooth load travel, precise positioning, low maintenance, and long service life.
Designed for straight, curved, or customized monorail tracks, the system can be tailored to suit specific plant layouts, ensuring maximum operational efficiency and optimum utilization of available overhead space.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Monorail Hoist |
| Hoist Type | Wire Rope Electric Hoist / Electric Chain Hoist |
| Operation | Electric Operated |
| Capacity (SWL) | 250 kg to 50 Ton |
| Lifting Height | 3 Mtr to 30 Mtr (or as required) |
| Track Type | I-Beam / ISMB / Box Section Monorail |
| Trolley Type | Motorized / Geared / Push Pull |
| Travel Path | Straight / Curved / Customized |
| Hoisting Speed | As per Hoist Capacity |
| Travel Speed | 10 / 20 m/min (Variable Speed Optional) |
| Power Supply | 415V, 3 Phase, 50 Hz AC |
| Motor Insulation | Class F |
| Protection Class | IP55 |
| Control System | Pendant Push Button Station |
| Optional Control | Wireless Radio Remote Control |
| Duty Classification | M3, M4, M5 (IS/FEM Standards) |
| Surface Finish | Epoxy Primer with Industrial PU Paint |
| Standard Colours | Orange, Yellow, Grey (Custom Colours Available) |
| Application | Overhead Material Handling |
Standard Features
Design & Manufacturing Standards
- IS 3177 – Code of Practice for Electric Overhead Travelling Cranes
- IS 807 – Design, Manufacture & Erection of Cranes
- IS 2062 – Structural Steel
Structural Features
- Heavy-duty monorail beam construction
- Precision-engineered trolley assembly
- Compact and space-saving design
- Straight or curved monorail configuration
- Smooth load movement
- Robust fabricated steel construction
- High structural rigidity
- Long operational life
Mechanical Features
- Wire Rope or Electric Chain Hoist options
- Motorized, Geared or Push Pull Trolley
- Precision-machined gearbox
- High-strength forged hook with safety latch
- Heavy-duty wheels with anti-friction bearings
- Smooth horizontal travel
- Low noise operation
- Maintenance-friendly design
Electrical Features
- Energy-efficient induction motors
- Electromagnetic fail-safe brake
- Class F insulated motors
- IP55 protected electrical components
- Pendant Push Button Station
- Upper & Lower Limit Switches
- Heavy-duty electrical control panel
- Variable Frequency Drive (VFD) compatible
Safety Features
- Electromagnetic fail-safe braking
- Overload Protection (Optional)
- Upper & Lower Limit Switches
- Emergency Stop Button
- Forged hook with safety latch
- Anti-drop trolley arrangement
- Factory load tested
- High safety factor design
Optional Features
- Wire Rope Electric Hoist
- Electric Chain Hoist
- Motorized Trolley
- Geared Trolley
- Push Pull Trolley
- Variable Frequency Drive (VFD)
- Dual Hoisting Speed
- Wireless Radio Remote Control
- Load Limiter
- Digital Load Display
- Curved Track System
- Flameproof / Explosion Proof Hoist
- Stainless Steel Components
- Customized Track Length
- Customized Lifting Height
- Special Paint Finish
Standard Scope of Supply
- Monorail Beam System
- Hoist Assembly
- Trolley Assembly
- Hoisting Motor
- Travel Motor (Motorized Models)
- Electrical Control Panel
- Pendant Push Button Station
- Limit Switches
- Power Supply System
- Fasteners & Hardware
- Installation Drawings
- Operation & Maintenance Manual
- Routine Test Certificate
- Warranty Certificate
Applications
Our Monorail Hoists are widely used in:
- Manufacturing Industries
- Engineering Workshops
- Warehouses
- Assembly Lines
- Automobile Industries
- Steel Fabrication Shops
- Machine Shops
- Foundries
- Power Plants
- Chemical Industries
- Pharmaceutical Industries
- Food Processing Plants
- Textile Industries
- Packaging Industries
- Maintenance Departments
- Production Facilities
- Material Handling Systems
Why Choose Hindustan Hoist & Cranes Mfg. Co.?
- Over 8+ Years of Manufacturing Experience
- Heavy-Duty Industrial Construction
- Premium Quality Components
- Smooth & Reliable Performance
- Compact & Space-Saving Design
- High Operational Safety
- Low Maintenance Cost
- Energy-Efficient Operation
- Customized Engineering Solutions
- Competitive Pricing
- Timely Delivery
- Complete Installation & Commissioning Support
- Genuine Spare Parts Availability
- Reliable After-Sales Service
Technical Advantages
- Efficient overhead material transportation
- Suitable for straight and curved track layouts
- Smooth and precise load movement
- Compact design requiring minimum floor space
- High-strength fabricated construction
- Low operating and maintenance costs
- High load handling efficiency
- Easy integration with production lines
- Long service life
- Designed for continuous industrial operation
Frequently Asked Questions (FAQs)
1. What is a Monorail Hoist?
A Monorail Hoist is an overhead lifting system in which a hoist travels along a fixed monorail beam to transport materials safely and efficiently between designated workstations.
2. What lifting capacities are available?
Our Monorail Hoists are available in capacities ranging from 250 kg to 50 Ton, with higher capacities available on request.
3. Which types of hoists can be used?
The system can be equipped with Wire Rope Electric Hoists or Electric Chain Hoists, depending on the application and lifting requirements.
4. Can the monorail track be customized?
Yes. We manufacture straight, curved, inclined, and customized monorail track systems to suit individual plant layouts.
5. Which industries commonly use Monorail Hoists?
They are widely used in manufacturing plants, warehouses, assembly lines, fabrication units, machine shops, automobile industries, steel plants, and production facilities.
6. Can the system be integrated with existing equipment?
Yes. Our Monorail Hoists can be integrated with existing production lines, conveyors, workstations, and material handling systems.
7. Do you provide installation and commissioning?
Yes. We provide installation, testing, commissioning, operator training, and complete technical support.
8. Are spare parts and after-sales service available?
Yes. We supply genuine spare parts and offer preventive maintenance, inspections, and reliable after-sales support.
9. Can the Monorail Hoist be customized?
Yes. We offer customization in capacity, lifting height, track length, track configuration, travel speed, control systems, and power supply.
10. What safety features are included?
Our Monorail Hoists are equipped with electromagnetic fail-safe brakes, limit switches, forged hooks with safety latches, overload protection (optional), emergency stop controls, anti-drop trolley arrangements, and factory-tested safety systems for reliable and safe lifting operations.
